400U/T

400U/T
Overview

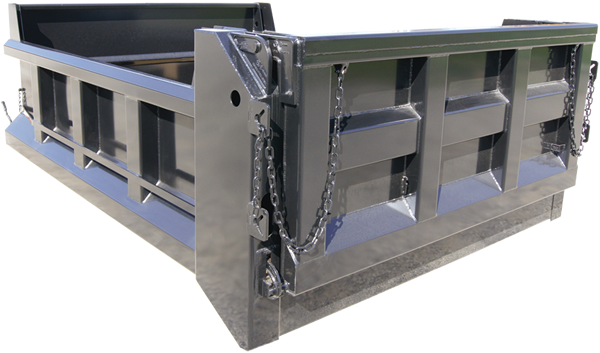

The rugged design of the Galion 400U/T series body makes it ideal for heavy loading and hauling conditions. This product is suitable for contractor, municipal and other applications where durability is key. The 400U/T series is available with front mount telescopic or underbody hoist to meet your most demanding requirements.

Specifications
  • General Dimensions:
    Available in 9' and 10' inside lengths, 84" inside width, standard side heights of 24",26" and 30" with 10" higher ends.
  • Sides:
    8 gauge high tensile steel with material shedding boxed top rails, full depth 15" rear corner post, 3 intermediate vertical side braces, 10" front and rear board extension pockets and full length tarp rails.
  • Floor:
    8 gauge high tensile steel with 2" floor to side radius.
  • Front Bulkhead:
    8 gauge high tensile steel construction with two bend top flange and one formed in place intermediate "V" brace.
  • Tailgate:
    8 gauge high tensile steel, 6 panel design with full perimeter box bracing, two intermediate vertical braces and one intermediate horizontal brace, double acting design with long chains and two sets of banjo eyes and full width lower tailgate pin.
  • Tailgate Hardware:
    Heavy duty cast "tarp friendly" top hardware and overshot lower hardware and manual release handle.
  • Lights:
    Meets all requirements of FMVSS108 with oval stop/tail/turn lights recessed in rear corner posts. All lighting is recessed, shock mounted, complete with factory wiring harness.
  • Understructure:
    Stacked design utilizing 6" structural longitudinals gusseted to 4" structural channel crossmembers on 12" centers, lubricated front and rear cross shafts and full width rear bolster.
  • Safety Features:
    All Galion 400U/T bodies are shipped with a "body up" warning light and OSHA required back up alarm.
  • Paint:
    Glossy black thermoset powder coating on top of thermoset Zinc powder coat primer.
Popular Options
  • Formed horizontal side brace ILO vertical bracing
  • Various cab protectors (sleek, widths to 90", long version)
  • 6" higher ends ILO 10"
  • Coal door in gate
  • Air tailgate
  • Additional light holes
  • Bolt on spreader apron
  • Mailhot hoist option
  • L.E.D. lighting ILO incandescent
  • Barn door tailgate ILO double acting
  • Cast HD quick release top hardware
  • Other gauges, material types and understructures available
