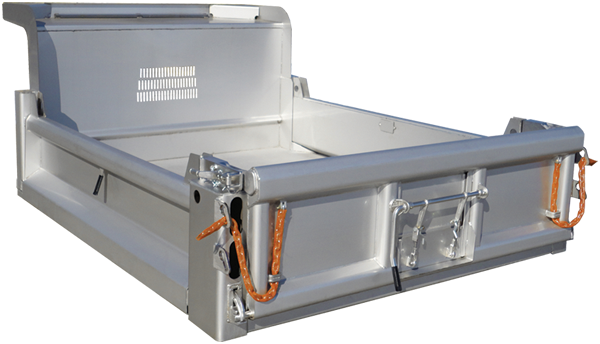

The Galion 133U body is designed for superior service on 9900 - 19500 GVWR cab/chassis'. This body feature a 3/16" high tensile steel floor, 10 gauge high tensile tailgate, head sheets and sides. The 133U is constructed with stainless steel Front corner posts, smooth sides, full depth rear corner posts and boxed “material-shedding" top rails are also standard.
- General Dimensions:
Available in inside lengths from 8' through 11'-6", 84" inside width with 13" sides and 19" gate or 18" sides and 24" gate.
10 Gauge high tensile steel with material shedding boxed top rails, full depth 10" rear corner post and low drag smooth design.
3/16" high tensile steel 1 pc with 2" formed in place floor to side radius.
- Front Bulkhead:
10 gauge high tensile steel construction with two bend top flange.
10 gauge high tensile steel. 1 panel design with full perimeter box bracing, double acting design with long chains and two sets of banjo eyes.
- Tailgate Hardware:
Heavy duty all stainless cast quick release top hardware and cast overshot lower hardware with manual release handle.
Meets all requirements of FMVSS108 with oval stop/tail/turn lights recessed in rear post. All lighting is recessed, shock mounted, complete with factory wiring harness.
Crossmemberless design using 3/16" X 100K steel formed into 5"trapeziod longbeams. Lubricated front and rear cross shafts and full width rear bolster.
- Safety Features:
All complete Galion 133U bodies and hoist are shipped with a “body up" warning light and OSHA required back up alarm.
- 304 #4 stainless steel construction
- 304-2B stainless steel construction
201-LN2B stainless steel construction
201 #4 stainless steel construction
Coal door in gate
Additional light holes
LED lighting IOL incandescent
Sleek cab protector (with or without window)
Integral cab protector (with or without window)
Bolt on spreader apron
Fold down sides
Pressed “V" side brace
Vertical boxed bracing available for sides and tailgate
Stainless floor and formed understructure available on the 133U
