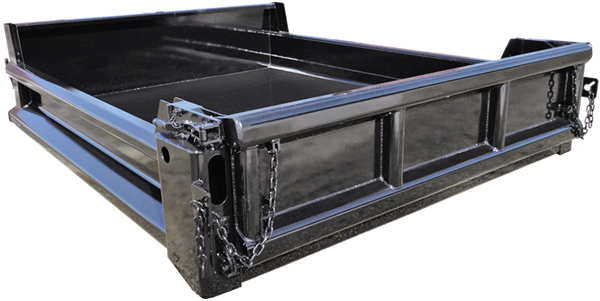

The Galion 130U body is designed for superior service on 9900 - 19500 GVWR cab/chassis'. This bodies feature a 3/16" high tensile steel floor, 10 gauge high tensile tailgate, head sheets and sides. Front corner posts, smooth sides, full depth rear corner posts, crossmemberless understructure, and boxed "material-shedding" top rails are also standard.
- General Dimensions:
Available in inside lengths from 8' through 11'-6", 84" inside width with 13" sides and 19" gate or 18" sides and 24" gate.
10 Gauge high tensile steel with material shedding boxed top rails, full depth 10" rear corner post and low drag smooth design.
3/16" high tensile steel 1 pc with 2" formed in place floor to side radius.
- Front Bulkhead:
10 gauge high tensile steel construction with two bend top flange.
10 gauge high tensile steel. 1 panel design with full perimeter box bracing, double acting design with long chains and two sets of banjo eyes.
- Tailgate Hardware:
Heavy duty cast quick release top hardware and cast overshot lower hardware with manual release handle.
Meets all requirements of FMVSS108 with oval stop/tail/turn lights recessed in rear post. All lighting is recessed, shock mounted, complete with factory wiring harness.
Crossmemberless design using 3/16" X 100K steel formed into 5" trapeziod longbeams. Lubricated front and rear cross shafts and full width rear bolster.
- Safety Features:
All complete Galion 130U bodies are shipped with a "body up" warning light and OSHA required back up alarm.
Glossy black thermoset powder coating on top of thermoset Zinc powder coat primer.
- 304 #4 stainless steel construction
- 304-2B stainless steel construction
- 201-LN2B stainless steel construction
- 201 #4 stainless steel construction
- Coal door in gate
- Additional light holes
- LED lighting ILO incandescent
- Sleek cab protector (with or without window)
- Integral cab protector (with or without window)
- Bolt on spreader apron
- Fold down sides
- Pressed “V" side brace
- Vertical boxed bracing available for sides and tailgate
