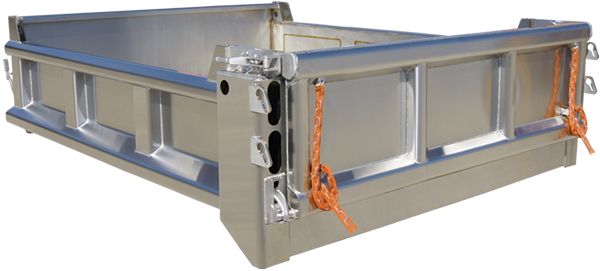

The Galion 103U body is designed for superior service on 9900 - 19500 GVWR cab/chassis'. The 103U is constructed with 10 gauge stainless steel. Front corner posts, two intermediate side braces, full depth rear corner posts and boxed “material-shedding" top rails are also standard.
- General Dimensions:
Available in inside lengths from 8' through 11'-6", 84" inside width with 13" sides and 19" gate or 18" sides and 24" gate.
10 Gauge high tensile steel with material shedding boxed top rails, full depth 10" rear corner post, front side brace, two intermediate vertical side braces and 6" front and rear board extension pockets.
10 gauge high tensile steel, with 2" radius floor to side radius.
- Front Bulkhead:
10 gauge high tensile steel construction with two bend top flange.
10 gauge high tensile steel with full perimeter box bracing, two intermediate vertical box braces, double acting design with long chains and two sets of banjo eyes.
- Tailgate Hardware:
Heavy duty all stainless cast quick release top hardware and cast overshot lower hardware with manual release handle.
Meets all requirements of FMVSS108 with oval stop/tail/turn lights recessed in rear post. All lighting is recessed, shock mounted, complete with factory wiring harness.
Stacked design utilizing 6" structural longitudinals gusseted to 3" structural channel crossmembers on 12" centers, lubricated front and rear cross shaft and full width rear bolster.
- Safety Features:
All Galion 103U bodies are shipped with a “body up" warning light and OSHA required back up alarm.
- Aluminum construction
- Coal door in gate
- Fold down sides
- Bolt on spreader apron
- 304 #4 stainless steel construction
- 304-2B stainless steel construction
- 201-LN2B stainless steel construction
- 201 #4 stainless steel construction
- Cab protectors (with or without window)
- Mailhot hoist option
